480V 380V 220V 110V Voltage Transformer Multiple Voltage Power Transformer

Name: 480V 380V 220V 110V Voltage Transformer Multiple Voltage Power Transformer
Brand: SHLEIPUSI Or Support OEM/ODM Service
Price: 1 USD

Buy cheap 480V 380V 220V 110V Voltage Transformer Multiple Voltage Power Transformer product

Brand Name : SHLEIPUSI Or Support OEM/ODM Service

Model Number : SG-25KVA Or Customized

Certification : CE;ISO9001;UL

Place of Origin : Shanghai

MOQ : 1

Price : 1 pc≤Qty≤5 pcs 505USD; 5 pcs＜Qty≤100 pcs 470USD; 100pcs＜Qty 461USD

Payment Terms : T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay

Supply Ability : 1000000PCS

Delivery Time : 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days

Packaging Details : Non-fumigation plywood case ; Reference packing size: 55X48X80CM; Reference weight: 130KG

Product name : 3 Phase Multiple Output Voltage Power Transformer

Place of origin : Shanghai, PRC

Rated capacity : 25KVA Or Customized

Product model : SG-25KVA

Rated input voltage : Three phase 480V or Customized

Rated output voltage : Three phase 380V 220V 110V or customized

Output precision : ±2%

Working temperature : －15℃~＋45℃

Insulation resistance : ≥5MΩ

Contact Now

3 Phase Multiple Output Voltage Power Transformer | SG Series Industrial Multi-Voltage Transformer

Product Introduction

Our 3 Phase Multiple Output Voltage Power Transformer (SG Series) is a premium industrial-grade power solution, engineered to deliver stable, fully isolated power with customizable multi-voltage outputs for global industrial applications. Designed for 50Hz/60Hz low-voltage circuits up to 1000V, this standard 25KVA transformer features 3-phase 480V input and flexible multiple outputs (380V, 220V, 110V), eliminating the need for multiple separate transformers to power diverse equipment. It is the ideal choice for factory power systems, precision equipment manufacturers, electrical engineers, CNC machine tools, photovoltaic systems, EV charging stations, power transmission equipment, generators, and other critical industrial scenarios worldwide.

Key Features & Advantages

Built with top-grade materials and precision design, our transformer delivers unmatched reliability and versatility:

Flexible Multiple Outputs: Standard 3-group voltage outputs, fully customizable to match your equipment’s unique voltage needs. One unit powers multiple devices with different voltage requirements, cutting costs and saving installation space.
High Efficiency & Energy Saving: High-permeability low-noise silicon steel core and high-purity winding material deliver ≥90% working efficiency, low energy loss, full capacity operation, and <80K temperature rise for long-term operational savings.
Superior Safety & Insulation: F-class insulation materials withstand 3500V voltage tests and 2500V dielectric strength testing, providing complete electrical isolation to eliminate harmonic interference and protect sensitive precision equipment. The IP23-rated metal enclosure comes with a safety trip lock, high-insulation terminals, and input/output indicators for maximum operator protection.

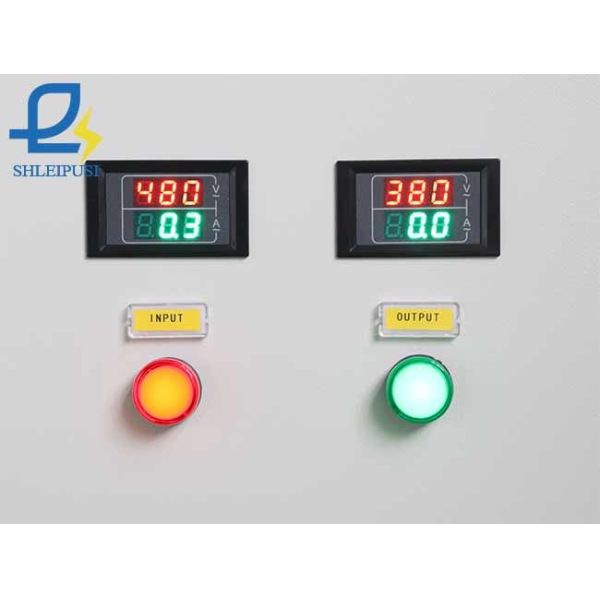

Smart Monitoring & Durable Design: Integrated digital display real-time tracks each phase’s input/output voltage and current with ±2% output precision. Porous heat dissipation structure (with optional cooling fan) rapidly reduces operating temperature to extend service life, while ultra-low noise (<55dB) and a -15℃ to +45℃ working range adapt to harsh industrial environments.

Why Choose SHLEIPUSI

As a professional transformer manufacturer serving the global market, we offer end-to-end solutions for your industrial power needs:

Full OEM/ODM customization for voltage, capacity, enclosure, logo, and packaging to align with your brand and local requirements
Strict full-process quality inspection from raw material incoming to pre-shipment testing, ensuring zero defects for every unit
Flexible terms with a minimum order quantity of 1 set, fast lead times for standard products, and global shipping support for all mainstream trade terms
Lifetime free technical guidance, professional installation support, and comprehensive after-sales service including on-site engineering service worldwide

Technical Specifications

Core Parameter	Standard Specification	Customization Support
Product Name	3 Phase Multiple Output Voltage Power Transformer	Fully Available
Model	SG-25KVA	Customizable
Rated Capacity	25KVA	Customizable
Input Voltage	3 Phase 480V	Fully Customizable
Output Voltage	3 Phase 380V/220V/110V	Fully Customizable
Working Frequency	50/60Hz	Customizable
Insulation Class	F	Customizable
Protection Class	IP23	Customizable
Output Precision	±2%	-
Working Efficiency	≥90%	-
Noise	<55dB	-

480V 380V 220V 110V Voltage Transformer Multiple Voltage Power Transformer

Frequently Asked Questions (FAQ)

What is the lead time for this 3 phase multiple output transformer?

3-7 working days for standard models, 10 days for small batches, 20-30 days for large or fully customized orders.
How do you ensure product quality?

We conduct professional full-process quality inspection from raw material receiving to final manufacturing, with products shipped only after passing strict pre-shipment tests.
What are your payment terms?

30% deposit for standard products, 50% advance payment for customized orders, with the full balance settled before shipment.
Can we customize the number and value of output voltages?

Yes, we fully customize output voltage combinations, input voltage, and capacity to match your specific application needs.
Do you provide technical support for installation?

Yes, our professional technical team offers free lifetime guidance, including video call support and on-site installation service by our engineers.
What packaging do you use for the transformers?

Large units are packed in reinforced wooden cases, while small products use high-strength cartons. Custom packaging is available upon request.
Do you accept OEM/ODM with our brand logo?

Yes, we provide full OEM/ODM services, including custom logo and brand printing on products and documentation for bulk orders.
What is your main global market?

Our products are sold worldwide, covering Central Asia, East Asia, South Asia, Africa, South America, North America, and Europe.
What is your minimum order quantity?

Our MOQ is 1 set for standard 3 phase multiple output voltage power transformers, supporting sample and trial orders.
What is your monthly production capacity?

We can produce 10,000 units/month for low-power products and 2,000 units/month for high-power industrial transformers.
