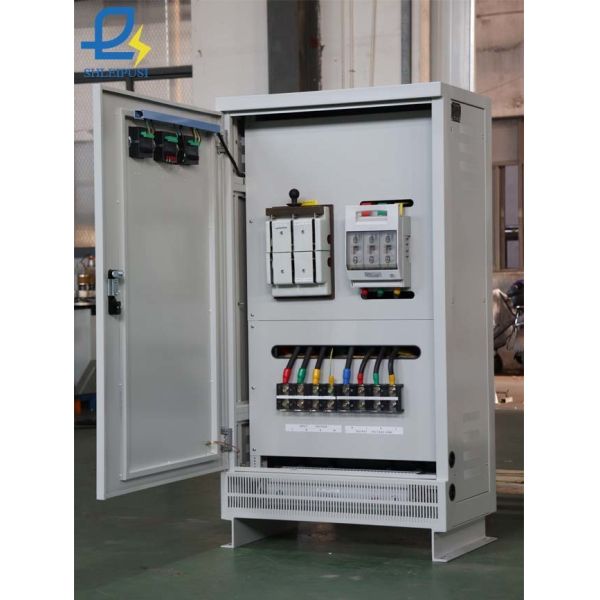

High Quality Industrial Isolation Transformer
Contact Info: Tel: +86 15926315252 | WeChat: +86 15926315252 | Email: daniel@shlepus.com | WhatsApp: +86 18979230829
Product Introduction

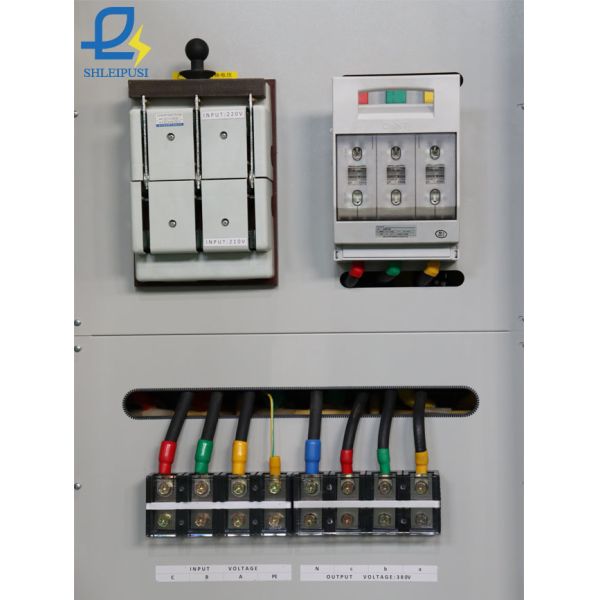

Our High Quality Industrial Isolation Transformer, from Shanghai Lepus Electrical Equipment Co., Ltd., is a premium three-phase power solution built for global industrial applications. Ideal for factory power systems, CNC machine tools, photovoltaic setups, EV charging stations, precision equipment, generators, and power transmission infrastructure, it delivers stable, safe, and efficient power conversion. It features an intuitive digital display for real-time voltage and current monitoring, safety trip lock, braked universal wheels, clear input/output indicators, and high-insulation reliable terminals. Its porous heat dissipation design with a cooling fan ensures consistent performance and extended service life in demanding industrial environments.
Features & Advantages
Engineered for superior performance, this industrial isolation transformer uses a high-permeability low-noise silicon steel core, delivering high magnetic flux, <80K temperature rise, and minimal energy loss for energy-saving full-capacity operation. High-purity windings ensure excellent conductivity, low heat generation, and long-term durability. High-insulation materials withstand a 3500V dielectric test, paired with a premium nylon frame for exceptional insulation and safety. With ±2% output precision, no extra waveform distortion, and <55dB noise, it meets strict requirements for sensitive precision equipment. It complies with global environmental standards, with customizable IP ratings (IP23 to IP64) to adapt to diverse working conditions.
Why Choose Us
As a professional Shanghai-based industrial transformer manufacturer, we serve global clients including electrical engineers, factory operators, and system integrators. We offer full OEM/ODM customization for parameters, appearance, logo, and packaging, with free professional product photography and 100% pre-shipment quality testing. Our robust production capacity (10,000pcs/month for low-power models, 2,000pcs/month for high-power units) supports all order sizes, with an MOQ of just 1 set. We provide flexible global shipping via sea, air, express, and railway, with all mainstream trade terms available. Our comprehensive after-sales service includes lifetime free technical guidance, video installation support, on-site engineer debugging, and free component replacement for warranty-covered quality issues, earning trust across Asia, Africa, and the Americas.
Technical Specifications
| Item |
Specification |
| Product Name |
High Quality Industrial Isolation Transformer |
| Brand |
Shanghai Lepus Electrical Equipment Co., Ltd. |
| Origin |
Shanghai, China |
| Rated Capacity |
130KVA (Customizable) |
| Model |
SG-100KVA (Customizable) |
| Rated Input |
3 Phase 210V/220V (Customizable) |
| Max Input Current |
341A (Customizable) |
| Rated Output |
3 Phase 380VAC+Neutral (Customizable) |
| Max Output Current |
197A (Customizable) |
| Frequency |
50/60Hz |
| Display |
Digital (Input/Output Voltage & Current) |
| Output Precision |
±2% |
| Insulation Class |
H |
| Working Temperature |
-15℃~+45℃ |
| Noise |
<55dB |
| Working Efficiency |
≥90% |
| Cooling Method |
Natural Cooling with Auxiliary Fan |
| Protection Class |
IP23/IP44/IP54/IP56/IP64 (Customizable) |
| Enclosure |
Metallic Painted (RAL7035, Customizable) |
Frequently Asked Questions (FAQ)
- What’s your lead time? 3-7 working days for standard products, 10 days for small batches, 20-30 days for bulk/custom orders.
- How do you control product quality? Full inspection from raw material incoming to production; only qualified products are shipped.
- What are your payment terms? 30% deposit for standard products, 50% advance for custom orders, balance settled before shipment.
- Do you offer installation technical support? Yes, our professional team provides full installation and application guidance.
- What’s your standard packaging? Large products in reinforced wooden cases, small products in cartons; custom packaging available.
- Do you accept OEM/ODM with our brand logo? Yes, we support full OEM/ODM, with logo printing for bulk orders.
- What’s your main global market? Central Asia, East Asia, South Asia, Africa, South America, and North America.
- What’s your monthly production capacity? 10,000pcs for low-power products, 2,000pcs for high-power models.
- What’s your minimum order quantity (MOQ)? The MOQ is 1 set for both standard and custom models.
- What’s the warranty period for your transformers? We offer a standard 12-month warranty, with extended warranty options available.
- Do your products have international certifications? Yes, our transformers comply with CE and ISO9001 standards, meeting global industrial safety requirements.
