AVR SVC Voltage Stabilizer 380V 3 Phase Voltage Regulator 20KVA 25KVA

Name: AVR SVC Voltage Stabilizer 380V 3 Phase Voltage Regulator 20KVA 25KVA
Brand: SHLEIPUSI Or Support OEM/ODM Service
Price: 1 USD

Buy cheap AVR SVC Voltage Stabilizer 380V 3 Phase Voltage Regulator 20KVA 25KVA product

Brand Name : SHLEIPUSI Or Support OEM/ODM Service

Model Number : TNS-20KVA Or Customized

Certification : CE;ISO9001;UL

Place of Origin : Shanghai

MOQ : 1

Price : 1 pc≤Qty≤5 pcs 390USD; 5 pcs＜Qty≤100 pcs 380USD; 100pcs＜Qty 375USD

Payment Terms : T/T,D/P,D/A,L/C,Western Union

Supply Ability : 1000000PCS

Delivery Time : 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days

Packaging Details : Non-fumigation plywood case ; Reference packing size: 57X44X96CM; Reference weight: 85KG

Product name : 20KVA 3 Phase Servo Type Voltage Regulator

Place of origin : Shanghai, PRC

Rated capacity : 20KVA Or Customized

Product model : TNS-20KVAOr Customized

Rated input voltage : 380VAC±20% Or Customized

Rated Output voltage : 380V Or Customized

Output precision : ±1～2%

Working temperature : －15℃~＋45℃

Contact Now

20KVA 3 Phase Servo Type Voltage Regulator

Product Overview

Our 20KVA 3 Phase Servo Type Voltage Regulator (TNS/SVC series) is a high-performance industrial automatic voltage stabilization solution, designed to deliver consistent, reliable power for global industrial and commercial applications. Part of our 6KVA to 120KVA standard regulator lineup, it features a default 304V-456V 3-phase input range (176V-264V single-phase optional) with fully customizable voltage specifications to match regional grid requirements.

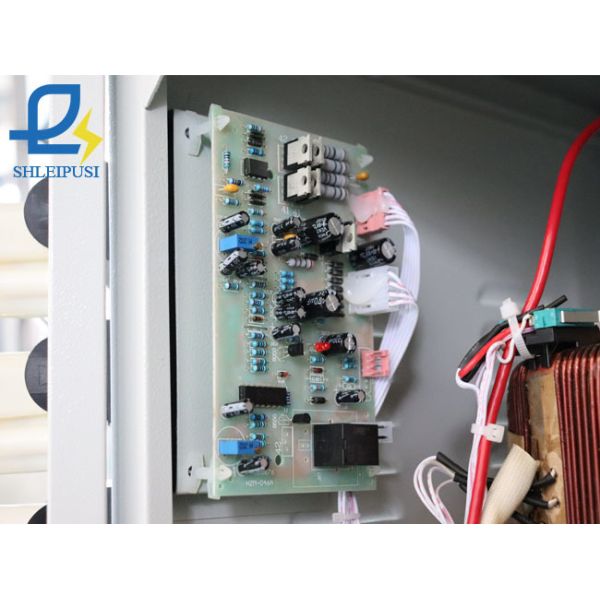

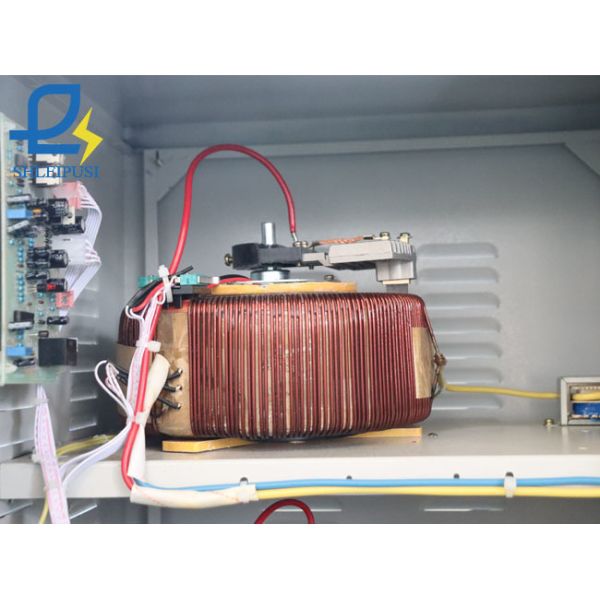

Built with core components including 100% purple copper coils, high-torque servo motor, intelligent microcomputer control board, and high-conductivity double carbon brushes, it operates with seamless precision: when grid voltage fluctuates or load changes, the control circuit drives the servo motor to adjust the carbon brush position along the coil, maintaining stable output voltage continuously. It is perfectly suited for factory power systems, CNC machine tools, laser cutters, photovoltaic systems, AI data centers, EV charging stations, generators, motors, and all precision industrial equipment, eliminating voltage-related downtime and asset damage.

Key Features & Competitive Advantages

High Precision & Fast Response: ±2% output accuracy with ultra-fast servo adjustment, delivering real-time correction for voltage fluctuations
High Efficiency & Long Lifespan: Full-capacity copper coil design minimizes losses, with high-grade raw materials ensuring reliable long-term operation
Zero Waveform Distortion: No additional harmonic distortion, fully compatible with inductive, capacitive, and resistive loads
Comprehensive Protection: Built-in over-voltage, under-voltage, over-current, overload, and short-circuit protection
User-Friendly Design: Brake wheels for easy mobility, customizable metallic cabinet (standard RAL 7035), and optional digital/pointer display

Why Choose Us

As a professional global voltage regulator manufacturer, we deliver end-to-end solutions tailored to industrial clients worldwide:

Full OEM/ODM Customization: Customizable parameters, appearance, logo printing, and packaging to meet your brand and technical needs
Strict Quality Control: 100% pre-shipment testing across all production stages, ensuring every unit meets international quality standards
Global Logistics Support: Multiple shipping modes (sea, air, express, railway) and full incoterms coverage, with secure wooden case packaging for safe transit
Comprehensive After-Sales: Lifetime free technical support, warranty coverage for quality issues, and optional on-site installation and debugging services
Flexible Ordering: MOQ of 1 unit for standard models, with monthly production capacity up to 10,000 units for bulk orders to meet your supply needs

Technical Specifications

Item	Specification
Product Name	20KVA 3 Phase Servo Type Voltage Regulator
Model	TNS-20KVA (Customizable)
Rated Capacity	20KVA (Customizable)
Rated Frequency	50/60Hz
Input Voltage Range	304-456VAC (Line to Line, Customizable)
Output Voltage	380V±2% (Line to Line, Customizable)
Phase Configuration	3 Phase 4 Wires (3P+N+G)
Operating Temperature	-10°C to +45°C
Display	Pointer Meters / Digital Display (Optional)
Dielectric Strength	2000V @ 1 Minute

AVR SVC Voltage Stabilizer 380V 3 Phase Voltage Regulator 20KVA 25KVA

Frequently Asked Questions (10 FAQs)

What is the lead time for this 20KVA 3 phase servo type voltage regulator?

3-7 working days for standard orders; 10-30 days for customized or bulk orders based on specific specifications.
How do you control the product quality?

Our professional QC team monitors raw material incoming and the full production process, with every unit passing strict performance testing before shipment.
What are your payment terms?

30% deposit for standard products, 50% advance payment for customized orders, with the full balance settled before shipment.
Do you provide technical support for product installation?

Yes, our professional engineering team offers full installation guidance via video or phone, with optional on-site installation and debugging services.
What packaging do you use for the products?

Large-capacity units use reinforced wooden cases for transport protection, while small products use high-strength cartons; custom packaging is available on request.
Do you support OEM/ODM services with our brand logo?

Yes, we provide full OEM/ODM services, including logo printing on products, user manuals, and packaging for bulk orders.
What are your main global markets?

Our products are sold worldwide, covering core markets including Central Asia, East Asia, South Asia, Africa, South America, and North America.
What is your production capacity for voltage regulators?

Our monthly production capacity is approximately 10,000 units for low-power products and 2,000 units for high-power industrial regulators.
What is the minimum order quantity (MOQ) for this product?

Our MOQ for the standard 20KVA 3 phase servo type voltage regulator is 1 set, fully supporting sample and small-batch orders.
What after-sales service do you offer?

We provide lifetime free technical support, free component replacement for warranty-covered quality issues, and optional on-site service by our professional engineers.
